Another Corb-innovation! This newest version of our extremely popular Dual Touring saddle is the World’s first production Heated AND Cooled motorcycle saddle. That’s right, Corbin was first to bring the luxury of heated seating to your motorcycle and now we’ve created an option for relief of your burnin’ bum during the Summer months. Like all Corbin break throughs, this system is designed for simple installation and is fully self contained in the saddle. Simplicity, Form and Function all wrapped up in one neat package.
 |
Mr C picked up a cool thermal imaging device and we just couldn’t pass up the opportunity to play around with it. Although the color time lapse video (HERE) is interesting to watch, this greyscale comparison actually tells the story more concisely. The two images in this comparison were shot just seven minutes apart with the first image being on “Cool” and the second image flipped to “Heat”. In these images, dark is cold and white is hot… Click the thumbnail and take a peek.
Corbin’s Dual Tour is the most generously sculpted seating on two wheels! This model is designed specifically for the HD Touring bikes that have the new (2014) Tour Pak design from The MoCo. In other words, it fits your Electra Glide Ultra Classic, Ultra Limited or the CVO Limited models. If you put the new Tour Pak on your 2014 Street Glide then this would be the way to roll for that also.
Wide, sculpted seating positions create a larger area of contact for excellent weight distribution. Shaped like your body to eliminate pressure points and give long lasting support that will keep you in the saddle all day.
Our rigid fibertech basepan provides a perfect fit and is built low to hug the frame. This allowed us to create a foam shape that keeps you in the sweet spot which provides a better center of gravity and more positive feeling of control. Deep, supportive bucket design gives over five inches of vertical support (15″ with backrest installed). All of this adds up to a very relaxed posture and comfortable ride so you’ll be able to go out and put serious miles under the tires.
Inside, our exclusive Comfort Cell foam provides firm support that stays resilient indefinitely. We cast this special Closed Cell material nearly twice as firm as the stock foam to support your body weight. Soft foam allows your body to fall through it the longer you sit on it… once compressed, soft foam offers no resilience and you start to experience discomfort. That’s why we always say “firm is a good thing!”

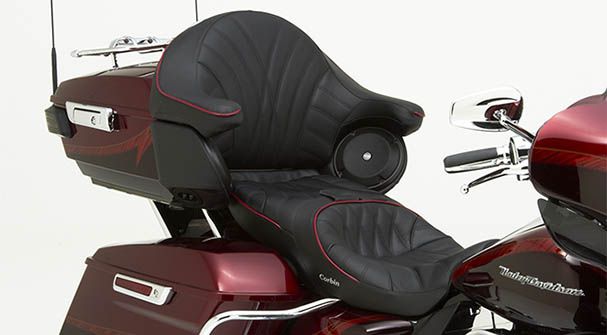

Rider’s seating area is designed to work with an optional Corbin backrest for added comfort and support. Fully adjustable to fit a wide variety of statures and riding postures. Internal hardware keeps a clean look and allows for adjustment of the backrest fore – aft as well as the standard angle adjustment. Spring loaded fold down feature makes it easier to mount the bike. Works with a variety of Corbin backrest models. We recommend model #02-SB (shown) for a very good blend of form and function.
Passenger seating area is designed specifically to work with the new model Tour Pak from Harley-Davidson. In a rare feat, this seat offers passenger seating just as wide as the rider’s position for touring luxury. Combined with the 16 inches of vertical support provided by the Corbin Tour Pak armrest and your passenger will be ready to roll all day.
Our Trunk Armrest offers a sculpted design that gives a large contact patch and excellent support with integrated armrests that works great on the HD Tour Pak. Naturally it is contructed of the same high quality materials as the saddle for good support and integrated looks.

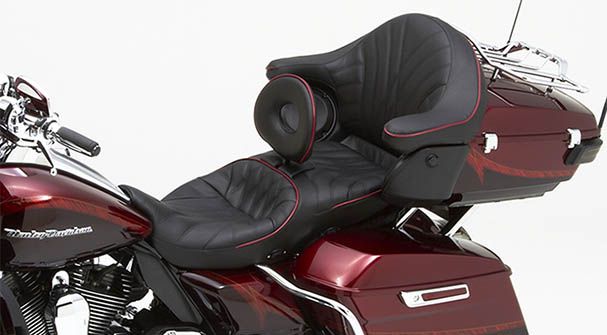

All components include genuine leather seating inserts for a truly luxurious ride. For a very classy and subtle touch we recommend our standard natural grain leather seating with coordinating vinyl sides. We prefer leather seating because it is durable, will breathe with your body and adapt with the foam shape as it breaks in. Vinyl side panels help to support the foam shape and keep the cover looking nice longer. A wide variety of color and texture options are available by special order at no additional charge. Shown above we’ve added a Candy Red welt to coordinate with the CVOs paint.
About Fire & Ice: Ever hear of the Peltier Effect? If so, you’ve probably already figured out the basics of how the Corbin Fire & Ice system works. With just a couple of fans and some clever application we can include both heat and cool in the same saddle without pumps, compressors or fluids. It should be noted the cooling effect is affected by ambient temperature. The system will quickly cool the surface 10-15 degrees below ambient temperature. On the heat side we thermostatically set it to top out at approximately 110 degrees. The degree of heat/cool you experience will, of course, be influenced by the type of riding gear you wear.
| *Â Read* |
Simple installation uses a tongue in the front and a single bolt into your fender at the rear. For tool free installation and a very clean look we offer a stainless steel thumbscrew for this location. Installation of your new climate controlled seat is simple as all the magic is already contained in the saddle. All you need to do is provide power via a simple to install fuse box adapter that we include.
Dual Touring saddle offers the option of; No electrics, electric seat heaters or the Fire & Ice with heat and cooling. Heaters make for an added bit of luxury. Corbin seat heaters are controlled via a conveniently located switch along each seating position on the left side. Fire & Ice features a single switch that operates both front and rear simultaneously.
Simple installation uses a tongue in the front and a single bolt into your fender at the rear. If you opt for electric heat, we have two seat models depending on your bike’s configuraiton:
| #HD-FLH-14-DT-E | This saddle includes a Corbin designed wiring harness that integrates with your HD fusebox. It is for motorcycles that did NOT include a heated seat from the factory. |
| #HD-FLH-14-DT-HE | This model includes a wiring pigtail that plugs directly into the HD harness. It will work ONLY for motorcycles that included a heated seat from the factory. |
